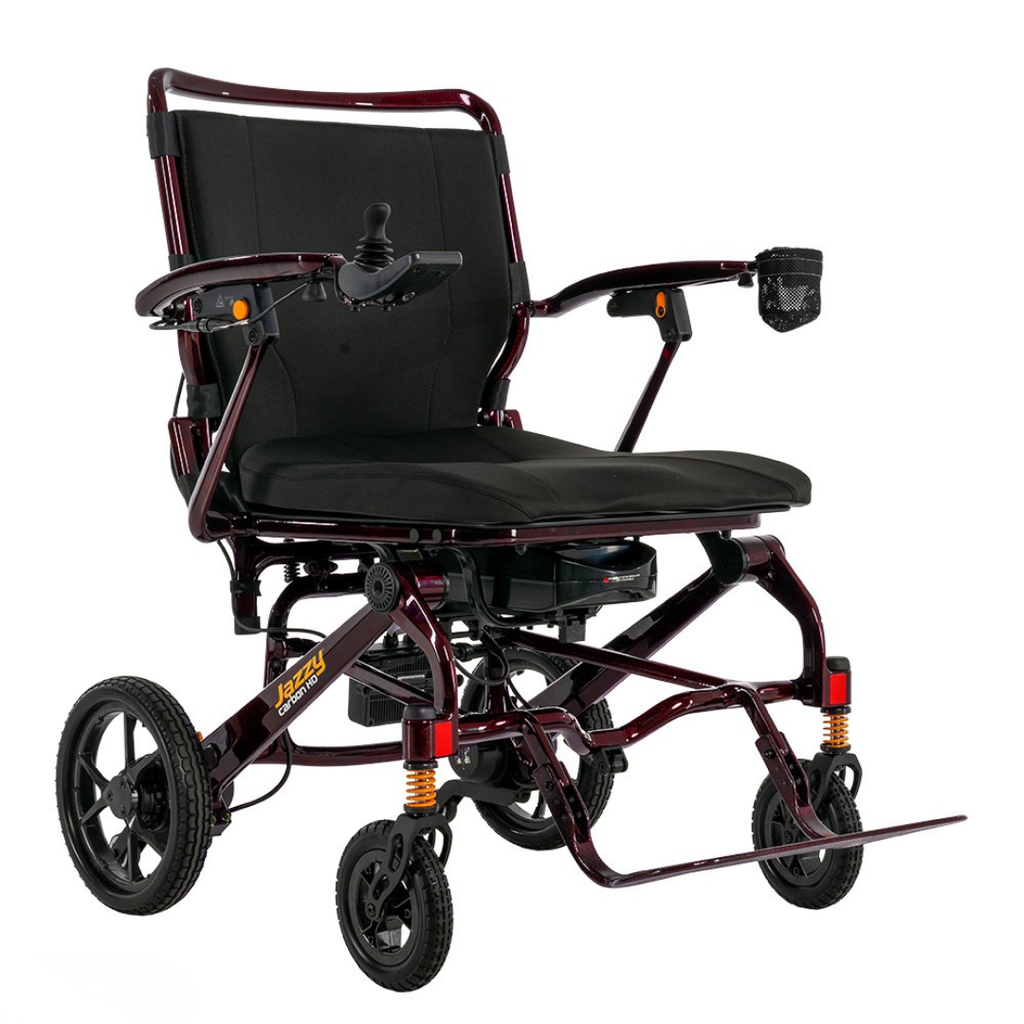

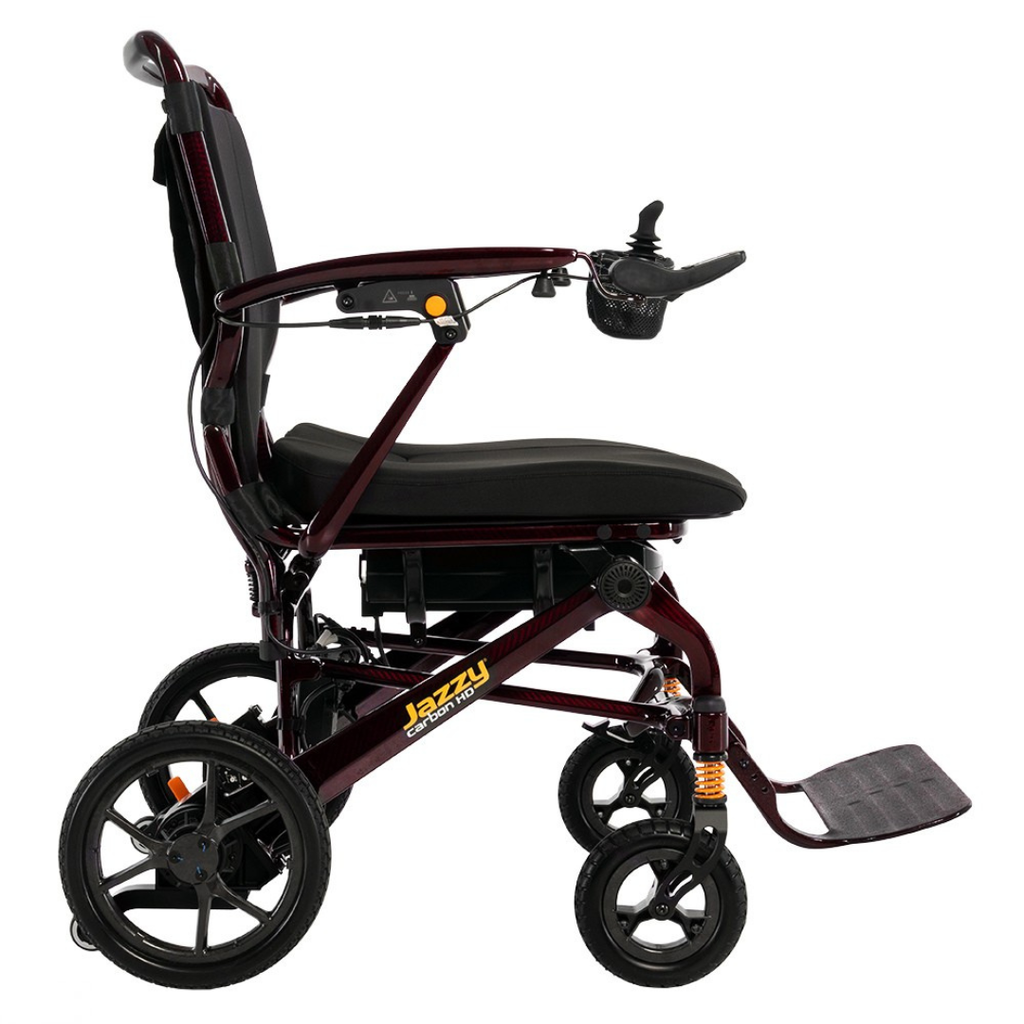

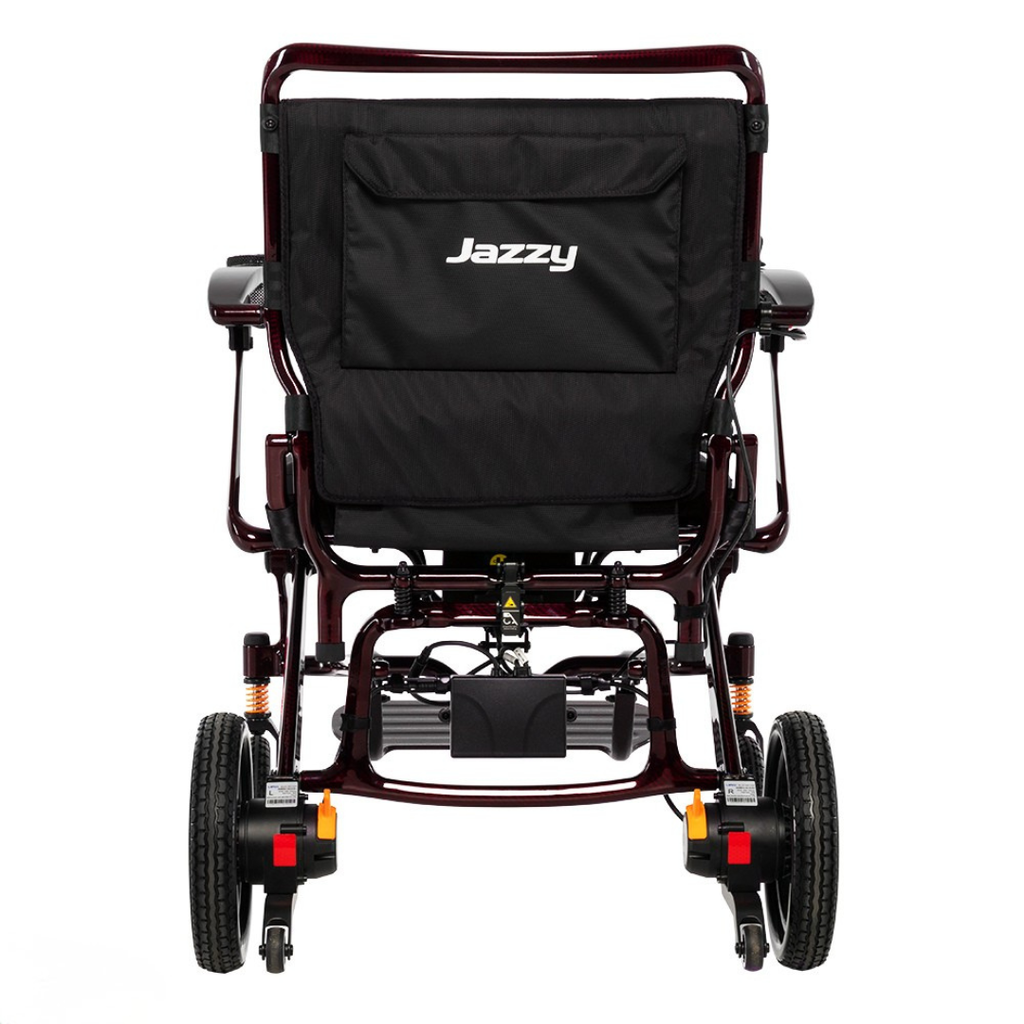

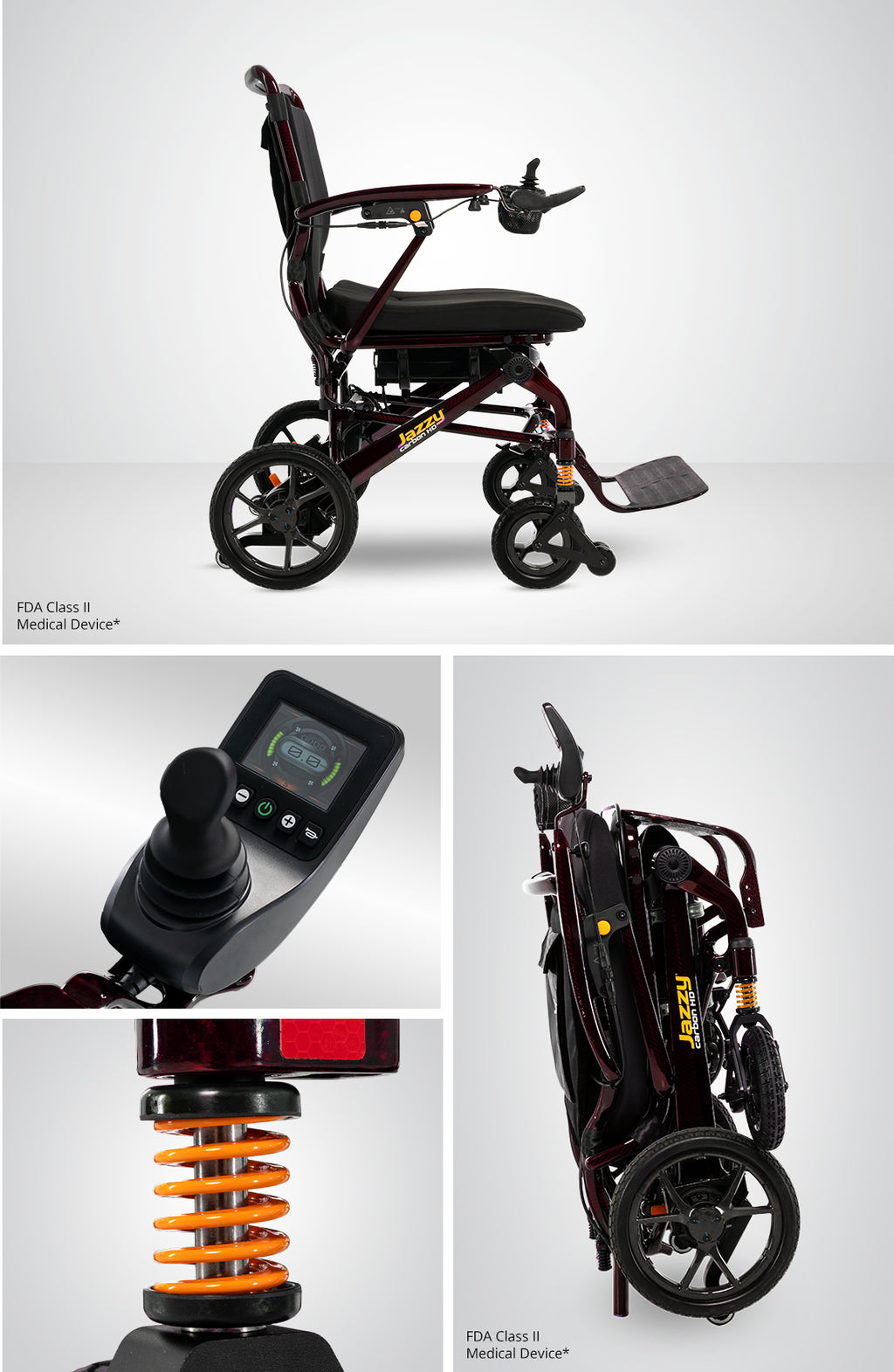

Jazzy® Carbon HD lightweight Power Chair - 181 kg SWL

• SWL / Weight capacity: 181 kg
• Maximum speed: up to 6 km/h
• Driving range: up to 20 km per charge
• Turning radius: 92.5 cm
• Overall dimensions: 93cm L × 67" W
• Folded dimensions: 31.3" L × 26.4" W × 13" H
• Product weight without batteries: 14.6 Kg
• Suspension: full front and rear suspension
• Front wheels: 6.5"
• Rear wheels: 10.6"
• Standard battery: 20 Ah lithium battery (436.8Wh)
• Charger: Off-board 2Ah Li-Ion type
• Ground clearance: 2.5cm at motor

• Weight Capacity 125 kg
• Maximum Speed Up to 6 km/h
• Turning Radius 90cm
• Overall Length 105 cm
• Overall Width 62 cm
• Seat-to-ground Height 48 cm (no adjustment)
• Casters 20.3 cm (8”) solid
• Drive Tires 30.5 cm (12”) solid
• Suspension Limited
• Range Per Charge Up to 20 km
• Total Weight Without Batteries 24 kg (54 lbs.)
• Heaviest Piece When Disassembled: 15.3kg
• Standard Seating Dimensions: 45 x 45 cm
• Drivetrain 2x 24v 170W brushed motors
• Electromagnetic brake
• Battery Requirements 10 Ah Lithium ion
• Battery Weight 2.24 kg
• Battery Charger 2-amp, off-board

Support Item: Scooter: Indoor/Outdoor Use

Scooter Item Ref No: 05_122303111_0105_1_2

We can deliver our range of Mobility Scooters in the SEQ region between Byron up to Noosa and out to Toowoomba (subject to terms and conditions, please enquire with our sales staff for details). Subject to scheduling availability, your Mobility Scooter can be delivered and installed by one of our qualified service technicians right to your home. Outside the SEQ region, due to the size and weight of our Mobility Scooters, we will need to ship using freight and courier services, this will be priced separately, please call 1300 688 388.

• Jazzy Carbon HD brochure
